Rack Mountable USB 2.0 to Octal RS-232 Wide Temp Serial Hub

Rack Mountable USB 2.0 to Octal RS-232 Wide Temp Serial Hub usb serial adapter

Rack Mountable USB 2.0 to Octal RS-232 Wide Temp Serial Hub

Item Works with Windows XP Item Works with MAC Operating System OS 9.1 or Higher Item Works with LINUX Operating System Item Works with Windows VISTA Item Works with Windows 7 Operating System

Mfg CoolGear
Part HUBCOM-880i-RM
Warranty One Year
In Stock Yes
Ship Weight 6
Color Black
Size 16 Ports
Platform Mac/Windows
Bar Code 736983900593
Our Price $299.99
Qty:

  • Rack-Mountable – Wide Temp Range – Industrial 8-Port USB to RS-232 Serial Hub

    The HubCOM-880i-RM is a rugged, industrial-grade Rack Mountable USB 16-Port combo hub consisting of 8 USB to RS-232 serial ports and 8 ports industrial USB 2.0 hub. This USB serial combo hub is compliant with USB 2.0 specification, it expands one USB host port into a combination of 8 high-speed RS-232 serial ports and 8 highly-efficient USB 2.0 ports.

    This industrial-grade HubCOM supports USB 2.0 high speed of 480 Mbps, USB 1.1 full speed of 12 Mbps, and low speed of 1.5 Mbps. It is powered by a quality industrial-grade switching power supply.

    Wide Temperature USB 2.0 to 8 Port Serial Hub

    The HubCOM-880i-RM USB Hub is designed to make RS-232 serial port expansion fast and uncomplicated, in addition to adding 8 USB 2.0 downstream ports for easy USB ports expansion. The HubCOM-880i-RM is automatically detected and installed to the system once connected, no additional memory resources are used on the system.

    USB 2.0 Port Support

    • Over-current detection and protection circuit design for USB hub
    • Each downstream USB port supplies 5V 500mA power for external high-power USB devices.
    • Supports USB 1.1 and USB 2.0 transfer speeds (1.5 ~ 480Mbps), automatic link and speed detection
    • All USB connectors with screw holes to lock the USB cable for extended security

    Compatible with Windows Communication Applications

    All RS-232 ports function as native Windows COM ports, and they are all compatible with Windows serial communication applications. Each of the 8 serial ports is individually configurable

    with different serial port speeds, serial communication parameters of data bits, stop bits,

    parity and RTS/CTS, XON/XOFF flow control, transmit and receive FIFO size, etc.

    The HubCOM-880i-RM Rack Mountable USB Serial Hub is designed for the use in industrial application under

    tough working environments. It is housed in a DIN-rail as well as rack-mountable metal

    case with screw holes on each USB port for lockable USB and power cables. Next to each USB downstream port connector are two screw holes for lockable USB cables to add extra reliability of connection. The terminal power input connector has two screw holes securely locking the power wires to prevent them from accidental disconnection.

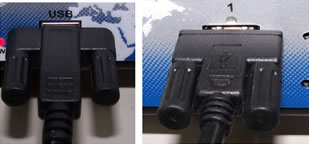

    Screw-Lock USB ports for secure connection

    The USB to Serial Hub Combo incorporates the USB hub chips specifically for industrial usage. Each downstream port provides full 500mA power to the connected USB devices. This HubCOM is featured with normal operation in wide ambient temperature from -40°C to 70°C (-40°F to 158°F) operation in a harsh environment. All the USB data lines and RS-232 signals are protected by 15KV ESD protection.

    HUBCOM-880i-RM Features

    • Adds eight industrial RS-232 serial ports and eight USB 2.0 ports by connecting to a USB 2.0 or USB 3.0 port
    • Industrial-grade USB 2.0 hub with rack-mountable SECC metal case
    • Suitable for DIN-rail and rack mounting. DIN-rail ears and rack brackets provided
    • Provides a terminal block connector to supply 5V 3A power for external devices
    • 15KV ESD immunity for all USB data lines and all RS-232 signals for protection
    • LEDs for power, USB status of each hub port, TxD and RxD of each serial port for
    • easy monitoring of port activity and status
    • Supports wide ambient temperature operation -40°C to 70°C (-40°F to 158°F)
    • CE, FCC approval

    Industrial RS-232 serial port supports:

    • Full RS-232 modem control signals (TxD, RxD, RTS, CTS, DSR, DTR, DCD) and hardware/software flow control
    • Baud rate up to 921.6K bps
    • 2K byte transmit FIFO & 2K byte receive FIFO

    System Requirements

    Any PC with an available USB port and USB compliant operating system

    – Windows 8, 7, Vista, XP, 2000, ME and above

    Specifications

    • Serial Ports Number: 8-Port
    • RS-232 Signals: DCD, RxD, TxD, DTR, GND, DSR, RTS,CTS
    • Max. Bitrates: 921600 bps
    • Serial Configuration
    • Data bits: 7 , 8
    • Parity: None, Odd, Even, Mark , Space
    • Stop bits: 1 , 2
    • UART FIFO Buffer size: Each port with 2K Bytes FIFO for transmit and receive

    LEDs

    • TxD Status 8
    • RxD Status 8
    • Power 1
    • USB Port Status 8

    USB 2.0 Port

    • USB Downstream 8
    • USB Upstream 1

    Speed

    • High Speed : 480 Mbps
    • Full Speed : 12 Mbps
    • Low Speed : 1.5 Mbps

    Output Voltage (per port): +5V DC

    Output Current (per port): 500mA (max)

    Mechanical & Power

    • Housing: Rack-mountable Metal Case
    • Weight: 1070 g
    • Dimensions: 333mm X 144 mm X 44mm (W x L x H)
    • 483mm X 144 mm X 44mm (W x L x H) with ears
    • Input Power Range: 90V AC to 264V AC
    • Terminal Block Connector
    • Output Power: +5V DC 3A

    Environmental

    • Operating Temperature: -40 °C to 70°C
    • Storage Temperature: -40 °C to 85°C
    • Humidity: 0 to 90% RH. Non-condensing
    • Safety Approvals: CE, FCC

  • Qty: | |
